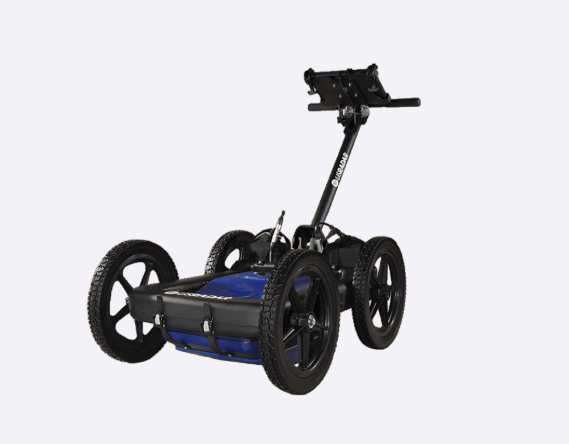

**US Radar Quantum Imager™

Triple-Frequency Geotechnical & Utility Locating System**

See Deeper. See Clearer. See Everything.

The US Radar Quantum Imager is a breakthrough in ground penetrating radar (GPR) technology—delivering unmatched depth, resolution, and data clarity through its industry-first triple-frequency imaging system.

Designed for professionals who demand complete subsurface visibility in a single pass, the Quantum Imager eliminates the limitations of traditional GPR by capturing low, mid, and high-frequency data simultaneously—giving you a full-spectrum understanding of what lies below.

Why the Quantum Imager Changes the Game

• True Triple-Frequency GPR
  Captures three independent datasets in a single scan—low (deep), mid (utilities), and high (fine detail) frequencies.
• Up to 30+ Feet Depth Capability
  Detect utilities, voids, and subsurface features at significant depths depending on soil conditions.
• Direct RF Sampling Technology
  Produces clearer, more interpretable images than traditional radar systems.
• Real-Time Subsurface Imaging
  Instant visualization for faster decision-making in the field.

Core Applications

• Utility locating (gas, water, electric, telecom, fiber optics)
• Geotechnical investigations & soil profiling
• Subsurface void and anomaly detection
• Environmental and geophysical surveys
• Roadway and infrastructure analysis
• Archaeological and non-destructive investigations
• Pre-construction risk mitigation

How It Works (Triple-Frequency Advantage)

Unlike conventional dual-frequency systems, the Quantum Imager operates across:

• Low Frequencies → Deep penetration for large or buried structures
• Mid Frequencies → Ideal for utility locating and common burial depths
• High Frequencies → High-resolution imaging of shallow features

All three datasets are collected simultaneously, eliminating multiple passes and ensuring complete subsurface coverage.

Technical Specifications:

System Overview

• Model: Quantum Imager™
• Technology: Triple-Frequency Ground Penetrating Radar (GPR)
• Signal Type: Stepped ultra-wideband multi-frequency pulses
• Data Acquisition: Real-time, multi-channel imaging
• Depth Range: Up to 30+ ft (9+ meters depending on conditions)

Performance

• Resolution: High-definition imaging across multiple depths
• Scan Capability: Single-pass full-spectrum data capture
• Calibration: Automatic soil-based calibration
• Processing: Real-time interpretation with advanced filtering

Hardware & Build

• Antenna: Triple-frequency integrated antenna array
• Cart System: Foldable, rough-terrain cart with solid tires
• Display: Rugged daylight-readable tablet interface
• Durability: Built for extreme field conditions
• Battery: Up to ~8 hours operation with hot-swappable capability

Tablet & Control System

• Processor: Intel® Core i5 (high-performance field computing)
• Display: 11.6″ FHD, sunlight-readable (1200 nits)
• OS: Windows 11 Pro
• Connectivity: WiFi, Bluetooth, USB, Ethernet
• Rugged Rating: MIL-STD-810H / IP66 certified

Software & Data Capabilities

• Real-time radar visualization
• SmartGain & SmartStack processing
• 3D imaging and depth slicing
• CAD, GIS, and Google Earth export compatibility
• GPS/RTK integration for georeferenced mapping
• Post-processing with advanced modeling tools

Deliverables (Professional Service Integration)

When deployed in field operations, the Quantum Imager produces:

• Utility mapping & marking reports
• CAD files (DWG / DXF)
• 3D subsurface models
• Depth slice visualizations
• GPS-tagged geospatial datasets
• As-built and verification reports
• Geotechnical interpretation summaries

Field Advantages

✔ Scan deeper without sacrificing resolution
✔ Eliminate multiple antenna passes
✔ Detect both shallow and deep targets simultaneously
✔ Reduce risk of utility strikes
✔ Improve project planning and safety
✔ Deliver high-value, data-rich reports to clients

Built for High-Stakes Projects

Trusted by:

• Utility locating professionals
• Civil & geotechnical engineers
• Infrastructure contractors
• Environmental consultants
• Government and municipal agencies

Dominate the Subsurface

The US Radar Quantum Imager isn’t just another GPR system—it’s a full-spectrum subsurface intelligence platform.

If your projects demand maximum accuracy, depth, and clarity, this is the system that gives you the edge.

Call to Action +1-808-282-9097

Ready to upgrade your subsurface capabilities?

Request Pricing
Schedule a Live Demo
Talk to a GPR Specialist
