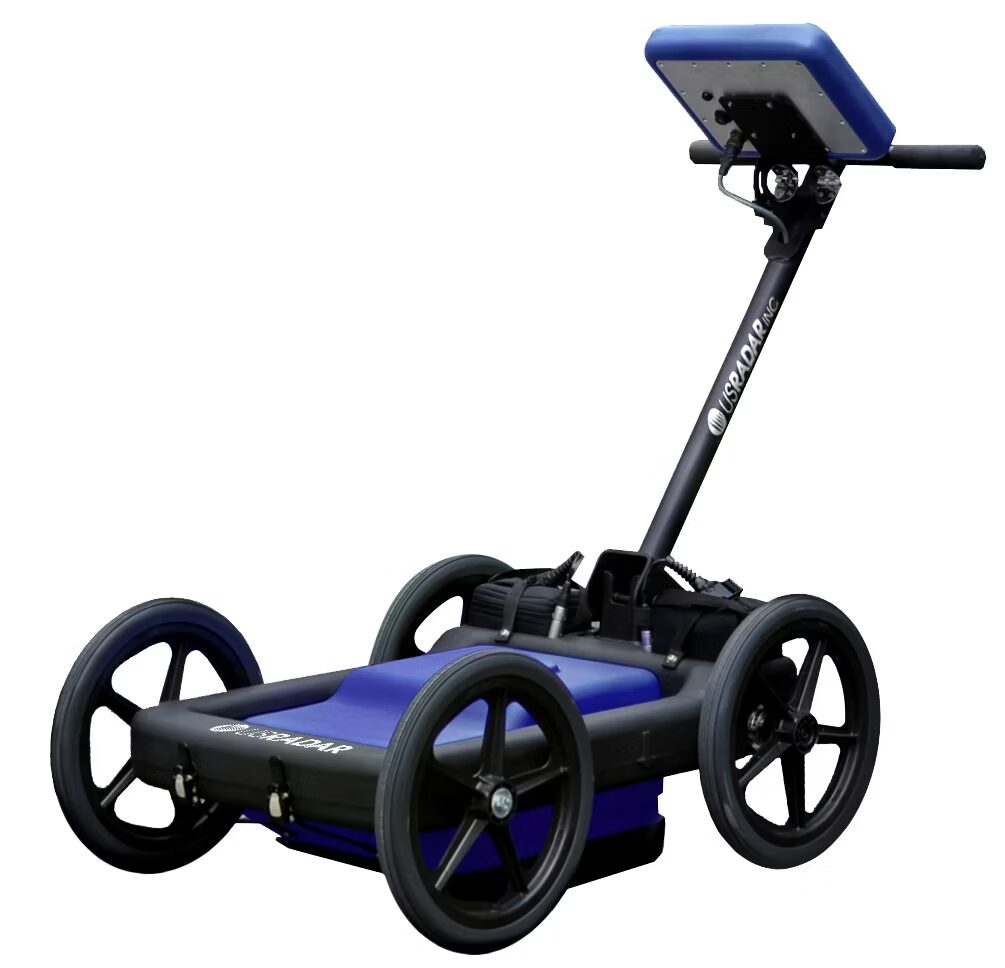

US Radar Q5 Series Ground Penetrating Radar System
The US Radar Q5 Series is a compact, affordable, and high-performance Ground Penetrating Radar (GPR) solution designed for utility locating, subsurface investigations, infrastructure inspection, and geophysical surveying. Engineered for professionals who require reliable underground imaging without the complexity of large GPR platforms, the Q5 Series delivers exceptional value for contractors, municipalities, utility locators, engineers, and environmental consultants.
Developed by US Radar Inc., the Q5 Series combines portability, rugged field construction, and intuitive operation with advanced real-time subsurface imaging technology.
The Q5 Series is ideal for:
- Underground utility locating
- Private utility investigations
- Concrete inspection
- Void and anomaly detection
- Geotechnical surveys
- Environmental assessments
- Archaeological investigations
- Pavement and roadway analysis
- Construction site subsurface scanning
Overview of the Q5 Series
The Q5 Series is designed as a lightweight and field-ready GPR platform capable of delivering accurate underground imaging while maintaining ease of use for both experienced geophysicists and first-time operators.
The system supports multiple antenna configurations and frequencies optimized for shallow-to-medium depth investigations with high target resolution.
The Q5 platform is especially effective for:
- Metallic and non-metallic utility locating
- PVC pipe detection
- Rebar and concrete imaging
- Underground storage tank identification
- Shallow geophysical mapping
- Sinkhole and void detection
Its modular design allows operators to deploy quickly in demanding environments including urban infrastructure corridors, roadways, construction zones, and remote field locations.
Key Features
Advanced Ground Penetrating Radar Imaging
- High-resolution subsurface imaging
- Real-time data acquisition and interpretation
- Detection of metallic and non-metallic targets
- Accurate target depth estimation
- Enhanced shallow utility resolution
- Optimized signal penetration in difficult soils
Rugged Portable Design
- Lightweight field-ready platform
- Compact transport configuration
- Rugged industrial construction
- Weather-resistant components
- Quick setup and deployment
User-Friendly Operation
- Intuitive touchscreen interface
- Real-time scan visualization
- Adjustable gain and filtering
- Easy export of scan data
- Minimal operator training required
Professional Survey Applications
- Utility locating and mapping
- Geotechnical investigations
- Infrastructure inspection
- Concrete scanning
- Archaeological surveying
- Environmental site assessment
Q5 Series Technical Specifications
| Specification | US Radar Q5 Series |
|---|---|
| System Type | Ground Penetrating Radar (GPR) |
| Antenna Configurations | Multiple integrated frequency options |
| Operating Frequencies | Approx. 250 MHz – 900 MHz depending on model |
| Depth Range | Up to approximately 10–15 feet depending on soil conditions |
| Data Collection | Real-time continuous scanning |
| Display | Integrated touchscreen interface |
| Positioning | Optional GPS/GNSS integration |
| Storage | Internal digital storage |
| Export Formats | Standard GPR data export |
| Power Supply | Rechargeable battery system |
| Operating Environment | Outdoor field and urban environments |
| Portability | Compact lightweight design |
Actual depth penetration depends on soil conductivity, moisture content, antenna frequency, and site conditions.
Available Q5 Series Configurations
Q5 Utility Locating System
Optimized for shallow utility locating and underground infrastructure mapping.
Applications include:
- Water line locating
- Gas line detection
- Fiber optic locating
- Electrical conduit tracing
- PVC and non-metallic pipe locating
Q5 Concrete & Structural Inspection
Designed for concrete scanning and structural evaluation.
Applications include:
- Rebar mapping
- Post-tension cable locating
- Concrete slab analysis
- Void detection beneath slabs
- Structural integrity assessments
Q5 Geotechnical Investigation Platform
Configured for subsurface investigations and geological analysis.
Applications include:
- Soil stratigraphy
- Sinkhole detection
- Void identification
- Archaeological imaging
- Environmental investigations
Advantages of the US Radar Q5 Series
Affordable Professional GPR
The Q5 Series provides professional-grade GPR capabilities at a more accessible price point compared to larger enterprise systems.
Easy to Operate
The intuitive user interface and simplified workflow reduce operator learning curves while maintaining professional-quality imaging results.
Versatile Field Applications
The system supports a wide range of applications across utility locating, engineering, environmental, and construction industries.
Excellent Portability
The lightweight compact design allows rapid deployment in confined urban environments and difficult terrain.
Typical Industries Served
The Q5 Series is widely used by:
- Utility locating companies
- Private utility contractors
- Engineering firms
- Municipal public works departments
- Environmental consultants
- Geotechnical investigators
- Construction companies
- Archaeological research teams
- Infrastructure inspection professionals
Optional Accessories
Available accessories may include:
- GPS/GNSS positioning modules
- Survey wheel encoders
- Transport cases
- Additional antenna configurations
- Data processing software
- Field tablets and controllers
- External battery systems
Why Choose the US Radar Q5 Series?
The US Radar Q5 Series offers a balance of affordability, portability, and professional-grade underground imaging performance. It is engineered for organizations seeking dependable Ground Penetrating Radar technology without the cost and complexity of larger research-grade systems.
The Q5 platform enables operators to quickly identify underground hazards, map utilities, and investigate subsurface conditions with confidence.
For utility locating professionals, engineers, and geophysical consultants, the Q5 Series provides a versatile and efficient solution for modern subsurface investigations.
Request Pricing & Product Information
For pricing, product demonstrations, training, or availability of the US Radar Q5 Series Ground Penetrating Radar systems, contact your authorized US Radar equipment provider.
