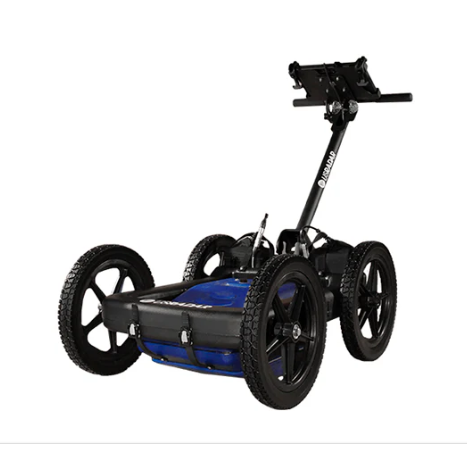

US Radar Q10 Utility & Geotechnical Locating System
High-Resolution Subsurface Imaging. Built for Precision. Designed for the Field.
The US Radar Q10 is a next-generation ground penetrating radar (GPR) system engineered for professionals who demand accuracy, reliability, and speed in utility locating and geotechnical investigations.
Whether you’re working in dense urban environments or complex subsurface conditions, the Q10 delivers crisp imaging, real-time data interpretation, and dependable depth penetration—giving you the confidence to locate, map, and verify what lies beneath.
Why Choose the Q10?
- High-Frequency Precision (1000 MHz Class)
Exceptional resolution for shallow subsurface detection, including utilities, conduits, and structural features. - Real-Time Data Visualization
Instantly interpret subsurface anomalies in the field—no guesswork, no delays. - Compact & Field-Ready Design
Lightweight, rugged, and built for demanding jobsite conditions. - Utility & Geotechnical Versatility
Ideal for locating utilities, voids, rebar, conduits, and subsurface anomalies.
Core Applications
- Utility locating (electric, gas, telecom, water)
- Concrete scanning & reinforcement mapping
- Subsurface void detection
- Geotechnical investigations
- Pavement and roadway analysis
- Environmental and site assessments
- Pre-construction risk mitigation
Technical Specifications:
System Overview
- Model: US Radar Q10
- Technology: Ground Penetrating Radar (GPR)
- Frequency Range: ~1000 MHz (high-resolution shallow imaging)
- Depth Capability: Up to ~10 feet (3 meters) depending on soil conditions
- Data Output: Real-time radargrams with digital storage
Performance
- Resolution: High-resolution imaging for small targets and closely spaced utilities
- Penetration Depth: Optimized for shallow to mid-depth scanning
- Scan Speed: Real-time continuous data acquisition
- Positioning: Compatible with marking and mapping workflows
Hardware
- Antenna Type: Shielded, high-frequency antenna
- Display: Integrated control unit or tablet-compatible interface
- Power Supply: Rechargeable battery system
- Battery Life: Full-day operation (typical field use)
- Weight: Lightweight, portable design for single-operator use
Software & Data
- Real-time signal processing
- Layer and target identification
- Data export formats for CAD/GIS integration
- Post-processing compatibility
- Reporting-ready outputs
Deliverables We Provide
When deployed as part of a professional service, the Q10 produces actionable deliverables including:
- Utility maps and marked layouts
- CAD files (DWG / DXF)
- Subsurface imaging reports
- Depth and anomaly analysis
- Concrete scan reports
- Geotechnical interpretation summaries
- As-built verification data
Built for Professionals Who Can’t Afford Mistakes
The Q10 is trusted by:
- Utility locating professionals
- Civil engineers
- Concrete scanning specialists
- Geotechnical consultants
- Construction and excavation contractors
Advantages in the Field
✔ Detect smaller targets with greater clarity
✔ Reduce excavation risks and costly damages
✔ Improve jobsite safety and planning
✔ Accelerate project timelines
✔ Deliver professional-grade reporting to clients
Get the Edge Below the Surface
With the US Radar Q10, you’re not just scanning—you’re seeing with precision. Make smarter decisions, reduce risk, and deliver results your clients can trust.
